Shank Type Worm Wheel Hob with Module m6
2022-06-07 11:52:33
jiangxingTools
3429
Shank Type Worm Wheel Hob with Module m6
Material: Powder Metal Steels (PM) and High-Speed-Steels (HSS)
Pitch circle dia. 54mm
Working length 115mm
Overall length 390mm
More taper: morse no. 4
quality: class A to DIN3968
Module m6, with pressre angle: PA20°
相關(guān)文章
-

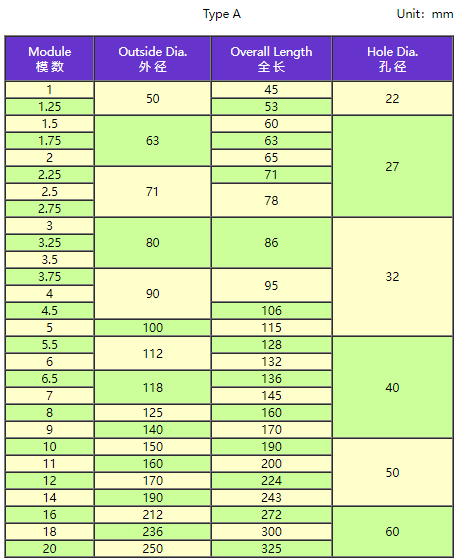

HSS DIN 8002 Standard Solid Gear Hobs with M1~M20
