Complete Spline Data for Ordering Straight Spline Hobs
1, No. of splines
2, Spline width
3, Outside dia.
4, Root dia.
5, Form dia.
6, Amount of chamfer-for semi-topping hobs
7, Under-cut details, if required
8, Shoulder details, if applicable
9, Basic profile reference standard
10, Material and its hardnes at hobbing stage
you are going to receive quality precision gear hobs for spline shafts.
相關文章
-

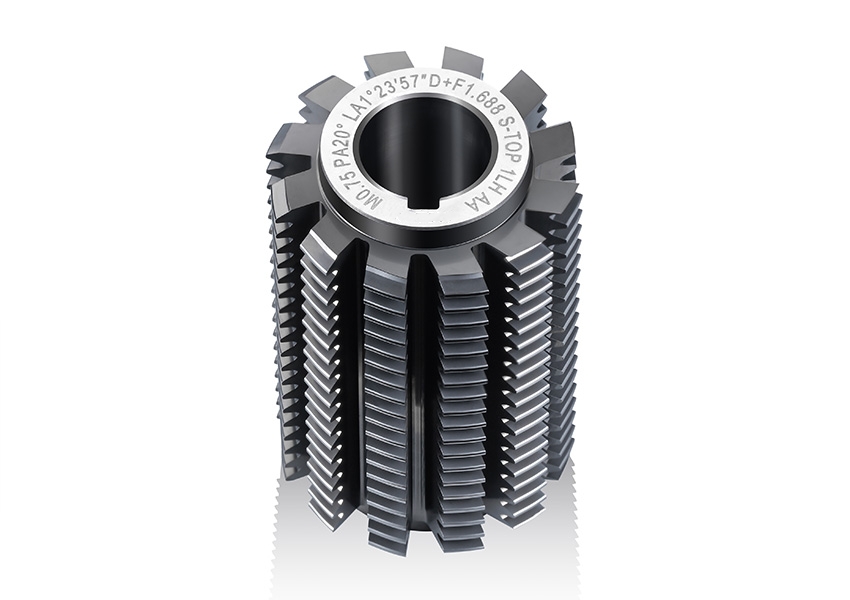

High Speed Dry Cutting Hob with Carbide K44+AP
