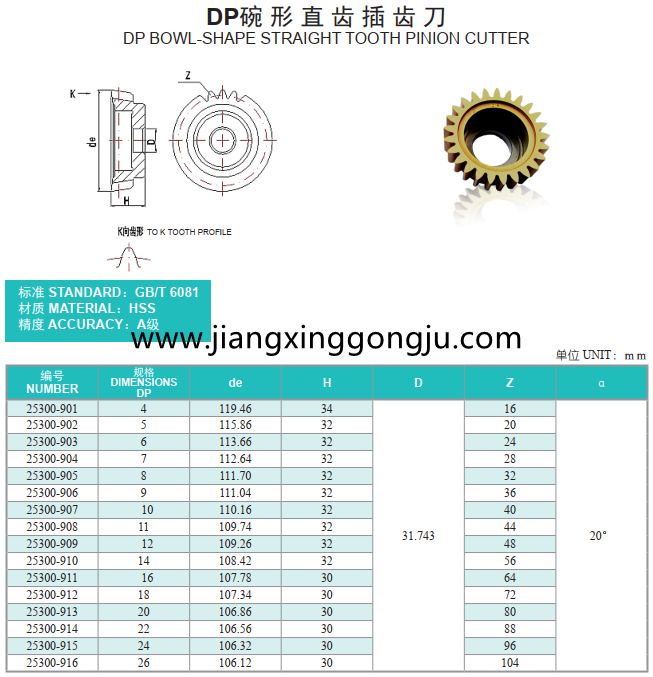

DP Bowl-Shape PCD100mm Straight Tooth Pinion Cutter
2021-10-14 15:15:06
jiangxingTools
2768
DP Bowl-Shape PCD100mm Straight Tooth Pinion Cutter
Module: DP4-DP26,AP20
Profile to GB/T6081 standard
Material: HSS M2, M35
Coating: TiN, AP
