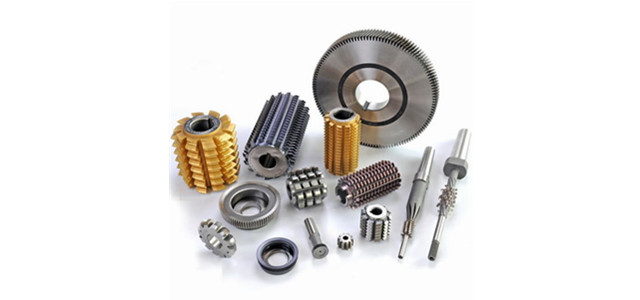

HSS Standard Gear Milling Cutter

M1, M1.25, M1.5, M1.75, M2, M2.25, M2.5—No.1~8pcs as a full set, bore: 22mm

M2.75, M3, M3.25, M3.5, M3.75, M4, M4.5-- No.1~8pcs as a full set, bore: 27mm

M5, M5.5, M6，M6.5, M7, M8--- No.1~8pcs as a full set, bore: 32mm

M9, M10---No.1~15pcs as a full set, bore: 32mm

M11, M12, M14, M15, M16---No.1~15pcs as a full set, bore: 40mm

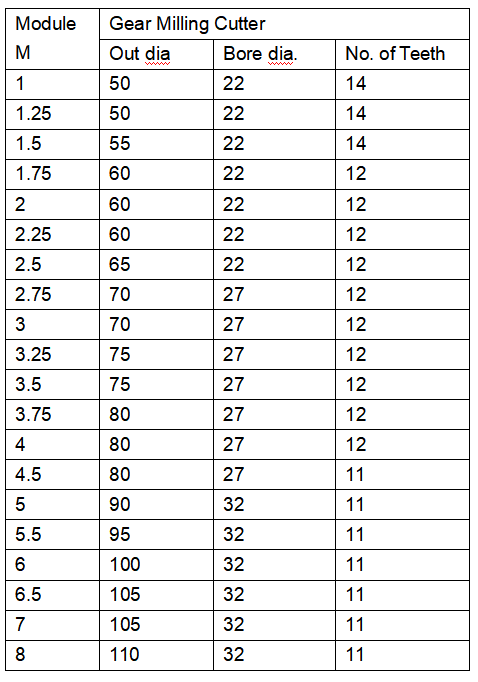

Specifications of involute spur gear milling cutter with m1-m8 pa20 as following:

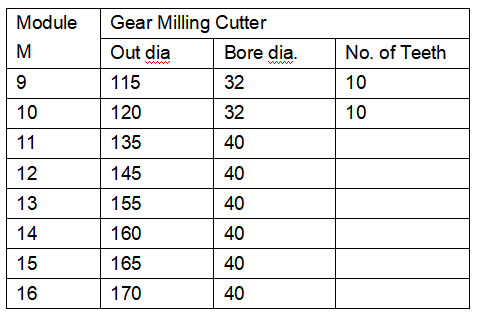

Specifications of involute spur gear milling cutter with m9-m16 pa20 as following:

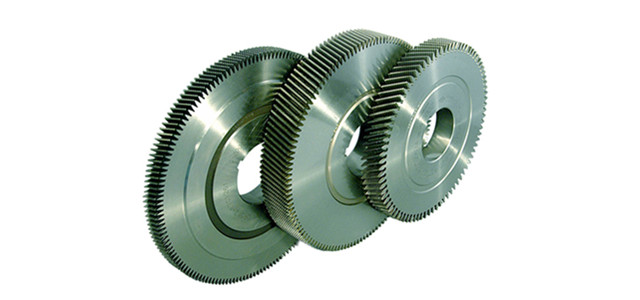

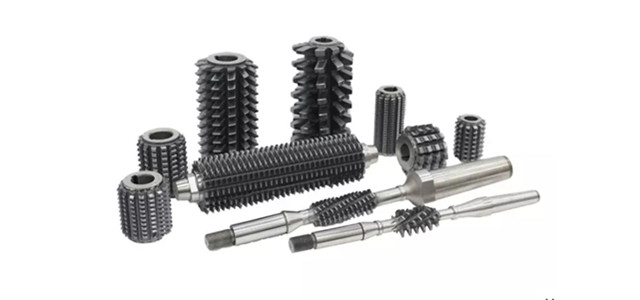

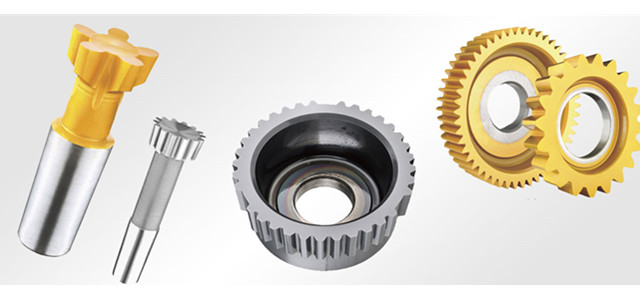

Chongqing Jiangxing Tools is professional gear cutting tools manufacturer and we have been exporting various gear cutting tools such as standard gear hobs, involute spline hob, roller chain sprocket hob, timing pulley hob, parallel side spline hob, worm gear hob, carbide hob, gear shaper cutters, shaving cutters, gear milling cutters and broaches etc tools made in up-to-dated facility with rich experience.

Any special requests on gear milling cutters, shaving cutters, shaper cutters and hobs,please contact us for more details.
