Heavy Cutting Gear Hob
1,Performance of heavy duty hob, 1),reduction of cycle time: faster cutting with more hob teeth, 2), reduction of hob wear: reduced hob teeth flank wear and overload beacuse of double hob cutting edge compared to a conventional hob, 3) more saving: increased productivity through increased too life.
2,Use: most effective when cutting large module gears and gears with many teeth.
3,Application range: modul 6 -module 32( A bigger module is more effective)

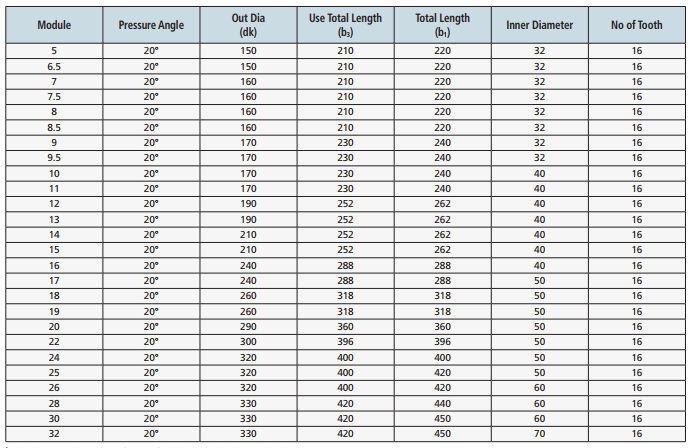

The above specificationfor the hob may be changed at the customer's request. and please contact us for more details on precision gear hob module.
相關文章
-

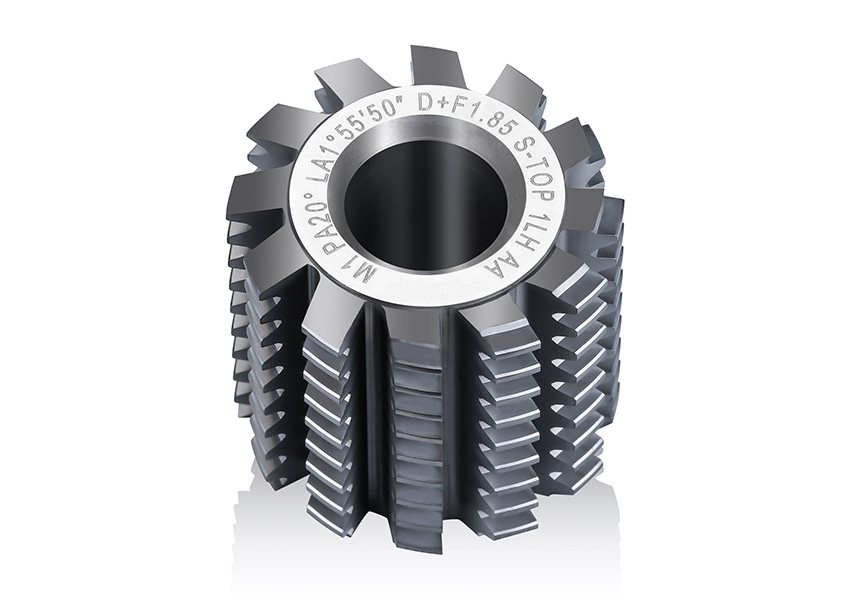

Low Speed Bore Type Solid Carbide Hob for Soft Tooth Oil Cutting
